CX180 Modular Plastic Chain Conveyor

175mm Chain Width

Technical Characteristics
  • Beam width: 182mm
  • Chain width: 175mm
  • Chain pitch: 33.5mm
  • Chain tension limit/tensile strength: 1250N
  • Item width: 70-200mm
  • Maximum item weight:
      Horizontal transport:15kg
  • Maximum conveyor load: 200kg
  • Maximum conveyor length: 30m

*Conveyor components may vary, and the conveyor system can be configured with the appropriate chain based on production needs like temperature and strength requirements.

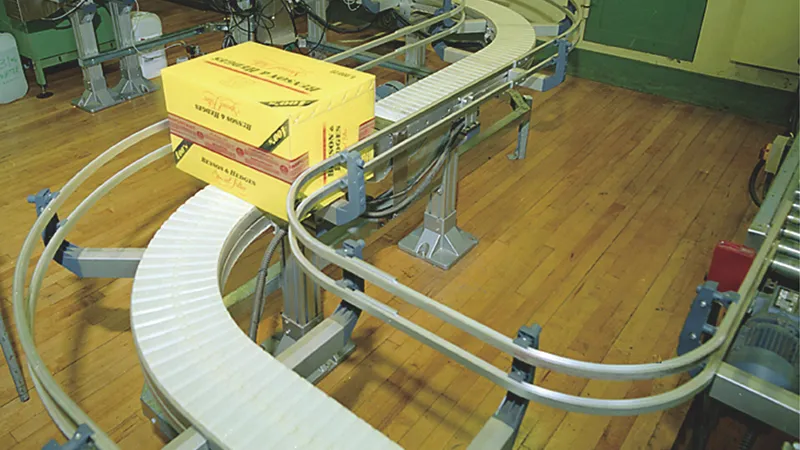

The modular plastic chain conveyor system features aluminum beams and flexible plastic chains crafted from high-quality DuPont raw materials. These conveyor chains efficiently distribute products horizontally and vertically across multiple levels. The compact vertical design of the conveyors saves floor space and enhances accessibility and operability for operators. The standard conveyor chain width is 175mm.

Advantages
  • Exceptional service and support: Our modular plastic chain conveyors are known for their top-notch service and technical support, which are on par with international brands.
  • Efficient delivery and competitive pricing: We ensure fast assembly and delivery, maintain a large inventory, and offer competitive pricing compared to global brands.
  • Compatible and flexible: Our advantage lies in the compatibility of our chain plates with well-known conveyor lines such as Flexlink, FlexMove, and Rexroth, giving customers more choice and flexibility.
Applications

This modular plastic chain conveyor is suitable for conveying large cardboard boxes, soft plastic packaging, personal items, chemical barrels, plastic bottles, and other products. It can be widely used in various industries such as industrial manufacturing, logistics, packaging, etc.

Conveyor Components

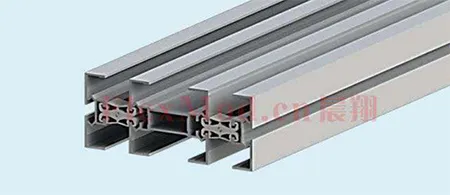

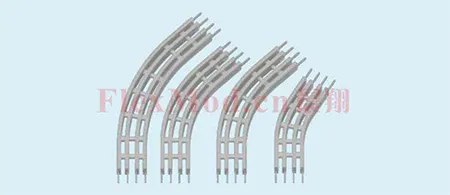

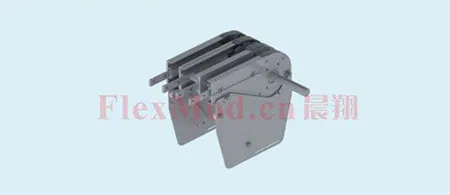

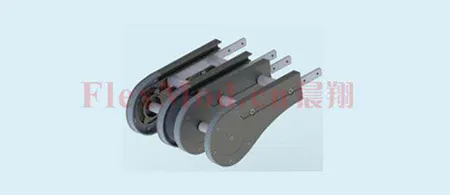

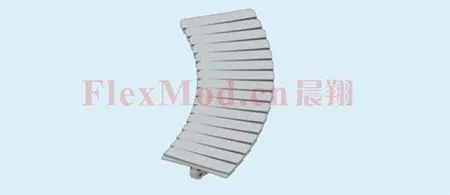

This modular plastic chain conveying system includes conveyor chains, conveyor beams, end drive units, idler end units, horizontal plain bends, and other various conveyor components. Each component is available in a range of options, ensuring flexibility for your conveying needs.

Discover More
Need help finding a conveyor system that fits your needs?
Modular Plastic Chain Conveyors
Conveyor System
Conveyor Accessories
Discover More Conveyor Types
CX300 295mm Chain Width
CX300 Modular Plastic Chain Conveyor 295mm Chain Width
CX45 43mm Chain Width
CX45 Modular Plastic Chain Conveyor 43mm Chain Width
CXT 35mm Chain Width
CXT Modular Plastic Chain Conveyor 35mm Chain Width
CXS 44mm Chain Width
CXS Modular Plastic Chain Conveyor 44mm Chain Width

FlexMod’s conveyor belts are suitable for moderate to heavy abrasive applications but must follow specific product recommendations and conveyor design guidelines. For more information, please contact our online customer service.

Plastic chain conveyor systems utilize plastic conveyor chains which provide exceptional durability, corrosion resistance, tear resistance, and the capability to endure demanding working conditions and heavy loads.

Plastic conveyor belts don't stick to materials, so they're easy to clean and particularly suitable for industries with stringent hygiene standards such as food and pharmaceutical transportation.

Yes, our company's conveyor system module components are compatible with other leading brands such as FlexLink®, FlexMove®, and Rexroth conveyor systems.

We offer on-site project management or installation support as needed. Additionally, our engineering and estimation teams are ready and happy to provide basic training and support.
