CX85 83mm Chain Width
CX85 83mm Chain Width CX85 83mm Chain Width
Request Information

CX85 Modular Plastic Chain Conveyor

83mm Chain Width

The CX85 modular plastic chain conveyor is highly favored in production lines for its versatility. Made with DuPont materials engineered plastic chains and anodized aluminum alloy profiles, the modular conveyor handles various products and excels in pallet conveyance and vertical lifting operations. The standard conveyor chain width is 83 millimeters.

Technical Characteristics
  • Beam width: 85mm
  • Chain width: 83mm
  • Chain pitch: 33.5mm
  • Chain tension limit/tensile strength: 1250N
  • Item width: 20-200mm
  • Maximum item weight:
      Horizontal transport:15kg
      Vertical transport: 10kg
  • Maximum conveyor load: 200kg
  • Maximum conveyor length: 30m
Vertical wedge conveyor applications
  • Item width: 40-300mm
  • Maximum conveyor length: 8m
  • Maximum item weight: 2kg
  • Materials: aluminum/stainless steel

*The conveyor components may vary, and this conveyor system can be configured with suitable chains according to the production requirements, e.g., temperature, strength, etc.

Advantages
  • Easy maintenance: The conveyor chain is pure white, and the conveying equipment does not require lubrication or regular maintenance for operation.
  • Highly resistant to corrosion: It is corrosion-resistant and complies with GMP regulations for safety and durability.
  • Compatible conveying solutions: Flexible conveying solution, as all our lines of plastic chain conveyors are designed to fit multiple conveyor systems from other conveyor manufacturers, including well-known brands such as Flexlink, FlexMove, and Rexroth.
Applications

This modular plastic chain conveyor is suitable for conveying products such as ball valves, bearings, motor rotors, car parts, disposable cans, plastic bottles, low-voltage switches, instruments and meters, paper towels, packaged food, tooling plates, etc.

Examples of industries of application include industrial manufacturing, electrical/electronic industries, automotive, logistics industries, cosmetics, food & beverage, packaging, etc.

Conveyor Components

This modular plastic chain conveying system includes conveyor chains, conveyor beams, end drive units, idler end units, horizontal plain bends, and other various conveyor components. Each component is available in a range of options, ensuring flexibility for your conveying needs.

Discover More

  • Conveyor chainsConveyor chains
  • Conveyor beamConveyor beam

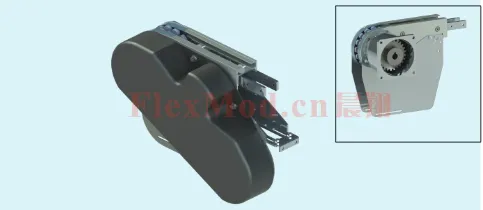

  • End drive unitsEnd drive units

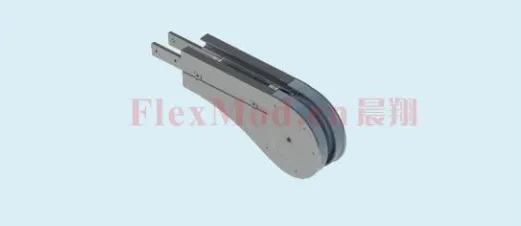

  • Idler end unitIdler end unit
Need help finding a conveyor system that fits your needs?
Modular Plastic Chain Conveyors
  • CX45 43mm Chain Width
  • CXT 35mm Chain Width
  • CXS 44mm Chain Width
  • CXL 63mm Chain Width
  • CX85 83mm Chain Width
  • CXK 102mm Chain Width
  • CXH 103mm Chain Width
  • CXW140 140mm Chain Width
  • CX180 175mm Chain Width
  • CX300 295mm Chain Width
Conveyor System
  • Single Track Pallet Conveyor Single Track Pallet Conveyor
  • Twin Track Pallet Conveyor Twin Track Pallet Conveyor
  • Spiral Conveyor Spiral Conveyor
  • Buffer Conveyor Buffer Conveyor
  • Wedge Conveyor Wedge Conveyor
  • PU Belt Conveyor PU Belt Conveyor
  • Multi-Function Conveyor Multi-Function Conveyor
  • Roller Conveyor Roller Conveyor
Conveyor Accessories
  • Components for Plasctic Chain Conveyors
Discover More Conveyor Types
CXK 102mm Chain Width
CXK Modular Plastic Chain Conveyor 102mm Chain Width
CXH 103mm Chain Width
CXH Modular Plastic Chain Conveyor 103mm Chain Width
CXW140 140mm Chain Width
CXW140 Modular Plastic Chain Conveyor 140mm Chain Width
CX180 175mm Chain Width
CX180 Modular Plastic Chain Conveyor 175mm Chain Width

Can you provide training?

We offer on-site project management or installation support as needed. Additionally, our engineering and estimation teams are ready and happy to provide basic training and support.

Do you offer standard products?

Yes indeed, we provide a range of standard conveyor systems and components based on your material handling needs. Our engineering team provides consistent support during the design phase. We also manufacture various other conveyor types. Feel free to reach out for further details.

Your company's conveyor system components are compatible with other brand systems?

Yes, our company's conveyor system module components are compatible with other leading brands such as FlexLink®, FlexMove®, and Rexroth conveyor systems.

Are your products pre-assembled or do we need to assemble them?

Absolutely, our products come fully pre-assembled, so you won't need to worry about assembling them on-site. This saves you time and effort during installation. We also take special care to protect the goods during transport by disassembling support legs and motors and packaging them together with the equipment on the transport pallet.
