CXK Modular Plastic Chain Conveyor

102mm Chain Width

Technical Characteristics
  • Beam width: 105mm
  • Chain width: 102mm
  • Chain pitch: 38.1mm
  • Chain tension limit/tensile strength: 2500N
  • Item width: 50-300mm
  • Maximum item weight:
      Horizontal transport:30kg
      Vertical transport: 15kg
  • Maximum conveyor load: 800kg
  • Maximum conveyor length: 40m

*The conveyor components may vary, and the conveyor system can be configured with suitable chains according to the production requirements, e.g., temperature, strength, etc.

Our CXK modular plastic chain conveyor utilizes our exclusive flexible conveyor chains, which are crafted from DuPont raw materials, with diverse mold specifications and compatibility. Known for top-notch service and technical support, its product quality rivals international brands in the same category. The standard conveyor chain width is 102 millimeters.

Advantages
  • Customizable and cost-efficient: We design conveyor solutions tailored to your unique needs using readily available standard conveyor components. This approach streamlines design and assembly processes, ensuring quick delivery of customized solutions that are cost-efficient for you.
  • Flexible conveying solutions: Our modular plastic chain conveyors are designed to fit multiple conveyor lines of trusted brands like Flexlink, FlexMove, and Rexroth.
Applications

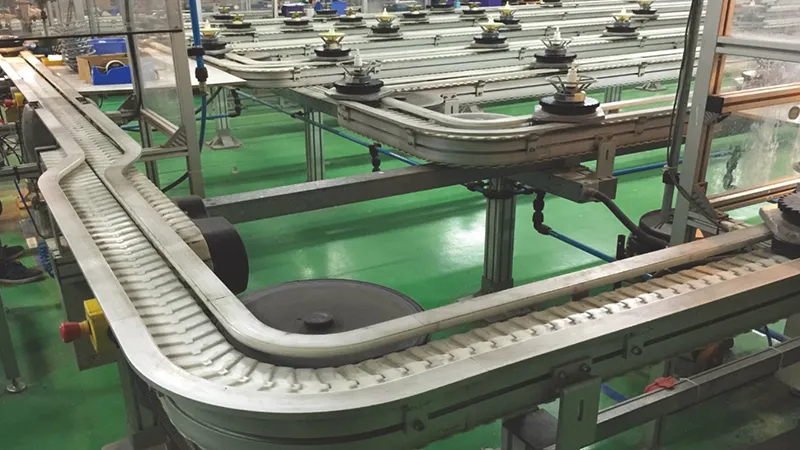

This modular plastic chain conveyor is suitable for conveying products such as ball bearings, gears, energy meters, high-voltage switches, hydraulic gear pumps, car parts, tooling plates, etc. It can be used in industries such as industrial manufacturing, electrical/electronic industries, automotive, logistics industries, etc.

Conveyor Components

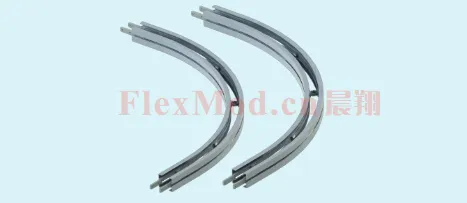

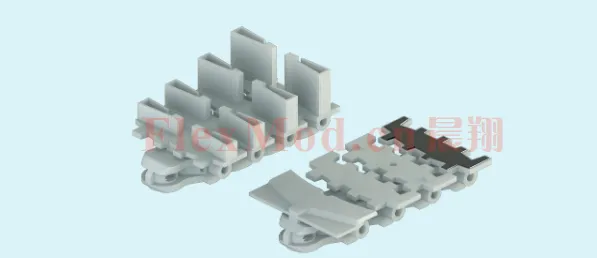

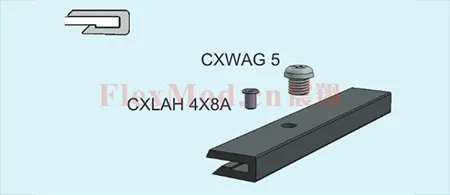

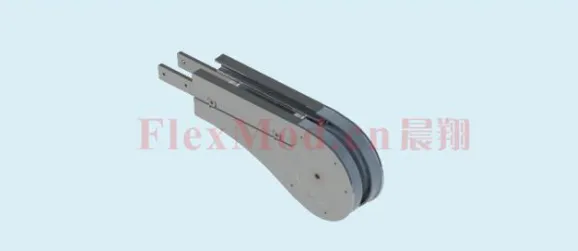

This modular plastic chain conveying system includes conveyor chains, conveyor beams, end drive units, idler end units, horizontal plain bends, and other various conveyor components. Each component is available in a range of options, ensuring flexibility for your conveying needs.

Discover More
Need help finding a conveyor system that fits your needs?
Modular Plastic Chain Conveyors
Conveyor System
Conveyor Accessories
Discover More Conveyor Types
CXH 103mm Chain Width
CXH Modular Plastic Chain Conveyor 103mm Chain Width
CXW140 140mm Chain Width
CXW140 Modular Plastic Chain Conveyor 140mm Chain Width
CX180 175mm Chain Width
CX180 Modular Plastic Chain Conveyor 175mm Chain Width
CX300 295mm Chain Width
CX300 Modular Plastic Chain Conveyor 295mm Chain Width

Our company has more than ten years of experience in this industry. Since the first conveyor system was delivered in 2014, we have shipped over 3000 units. In addition, we have launched the "FlexMod" brand and actively promoted it as our product line for sales and marketing purposes.

Chain conveyor systems, with their modular design, are easier to maintain and install, have energy-saving designs resulting in lower energy consumption, and offer higher conveying capacity, stable conveying speed, and accuracy.

Yes, our company's conveyor system module components are compatible with other leading brands such as FlexLink®, FlexMove®, and Rexroth conveyor systems.

Absolutely, our products come fully pre-assembled, so you won't need to worry about assembling them on-site. This saves you time and effort during installation. We also take special care to protect the goods during transport by disassembling support legs and motors and packaging them together with the equipment on the transport pallet.
