CXS 44mm Chain Width
CXS 44mm Chain Width CXS 44mm Chain Width
Request Information

CXS Modular Plastic Chain Conveyor

44mm Chain Width

Technical Characteristics
  • Beam width: 45mm
  • Chain width: 44mm
  • Chain pitch: 25.4
  • Chain tension limit/tensile strength: 500N
  • Maximum item weight
      Horizontal transport: 2kg
      Vertical transport: 1kg
  • Maximum conveyor load: 150kg
  • Maximum conveyor length: 30m
  • Materials: aluminum/stainless steel

*The conveyor components may vary, and the conveyor system can be configured with suitable chains according to the production requirements, e.g., temperature, strength, etc.

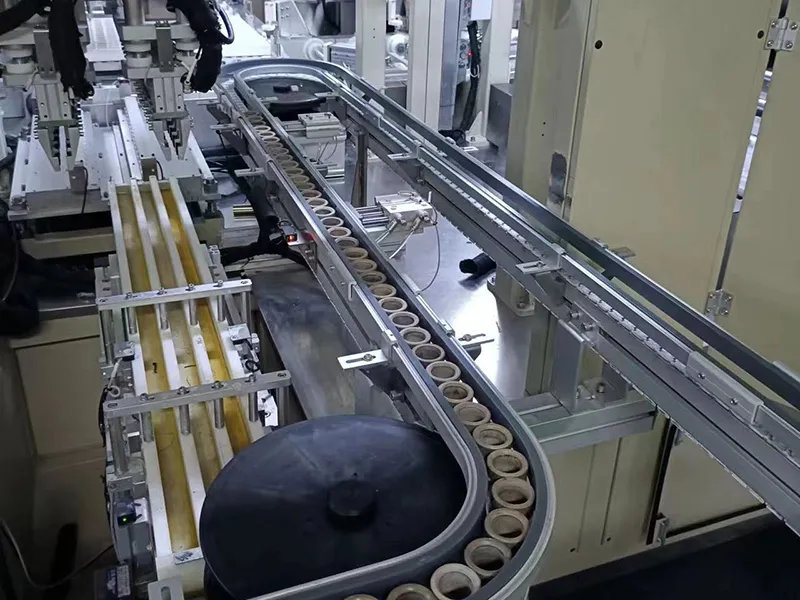

Our CXS plastic chain conveyor system features modular design, which increases the flexibility, convenience and efficiency of material conveyor systems and suits the various uses across production lines within factories.

Contrary to the traditional conveyor systems, our modular conveyor system uses a series of connected plastic chains/modules that function as a belt. Individually replaceable, this reduces the duration of maintenance and downtime of production lines, improving work efficiency and effectiveness.  Highly convenient, the modular plastic chain system can be applied to move products across various industries. The conveyor system is built with a design of compact vertical bends to optimize floor space utilization and to support multi-level transportation, making the conveyor easily accessible to operators. The standard conveyor chain width is 44 millimeters, accommodating a wide range of products of diverse weights and shapes, up to 8 kilograms.

Advantages
  • Fast and customizable conveyor solutions: To streamline your conveying operations and improve production flow and product quality, we use standard components to design customized conveyor solutions tailored to the unique needs of each customer. This approach allows for efficient design and assembly processes, enabling the faster delivery of customized conveyor solutions.
  • Compatibility and flexibility: For our customers' flexibility of choice, our lines of plastic chain conveyors are designed to fit multiple conveyor systems from other conveyor manufacturers, including well-known brands such as Flexlink, FlexMove, and Rexroth.
Applications

This modular plastic chain conveyor is suitable for conveying various types of packed products, both small pieces and bulk products, such as small ball bearings, perfume bottles, medicine bottles, aerosol cans, batteries, metal sintered parts, etc. The conveyor can be used for warehouse distribution in various industries including logistics pharmaceuticals, cosmetics, food & beverage, etc.

  • Battery ConveyorBattery Conveyor
  • Modular Conveyor for Smart MeterModular Conveyor for Smart Meter
Conveyor Components

This modular plastic chain conveying system includes conveyor chains, conveyor beams, end drive units, idler end units, horizontal plain bends, and other various conveyor components. Each component is available in a range of options, ensuring flexibility for your conveying needs.

Discover More

  • Conveyor chainsConveyor chains

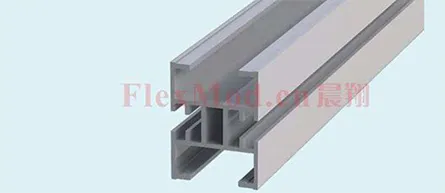

  • Conveyor beamConveyor beam
  • End drive unitsEnd drive units
  • Horizontal bend drive unitHorizontal bend drive unit
  • Idler end unitIdler end unit
Need help finding a conveyor system that fits your needs?
Modular Plastic Chain Conveyors
  • CX45 43mm Chain Width
  • CXT 35mm Chain Width
  • CXS 44mm Chain Width
  • CXL 63mm Chain Width
  • CX85 83mm Chain Width
  • CXK 102mm Chain Width
  • CXH 103mm Chain Width
  • CXW140 140mm Chain Width
  • CX180 175mm Chain Width
  • CX300 295mm Chain Width
Conveyor System
  • Single Track Pallet Conveyor Single Track Pallet Conveyor
  • Twin Track Pallet Conveyor Twin Track Pallet Conveyor
  • Spiral Conveyor Spiral Conveyor
  • Buffer Conveyor Buffer Conveyor
  • Wedge Conveyor Wedge Conveyor
  • PU Belt Conveyor PU Belt Conveyor
  • Multi-Function Conveyor Multi-Function Conveyor
  • Roller Conveyor Roller Conveyor
Conveyor Accessories
  • Components for Plasctic Chain Conveyors
Discover More Conveyor Types
CXL 63mm Chain Width
CXL Modular Plastic Chain Conveyor 63mm Chain Width
CX85 83mm Chain Width
CX85 Modular Plastic Chain Conveyor 83mm Chain Width
CXK 102mm Chain Width
CXK Modular Plastic Chain Conveyor 102mm Chain Width
CXH 103mm Chain Width
CXH Modular Plastic Chain Conveyor 103mm Chain Width

Using flexible material handling solutions, what operations can be completed during material conveying?

Flexible material handling components and systems can achieve operations such as distribution, sorting, merging, and diverting during material conveying processes.

What are the advantages of chain conveyor systems?

Chain conveyor systems, with their modular design, are easier to maintain and install, have energy-saving designs resulting in lower energy consumption, and offer higher conveying capacity, stable conveying speed, and accuracy.

Which types of products can chain conveyor systems be used for?

Chain conveyor systems are suitable for various types and shapes of products.
Due to the characteristics of chain conveyor systems, they can perfectly transport a wide range of materials, from bulk materials to packaged ones, supporting items and materials that can be boxed, bagged, canned, and loose.

What are the advantages of plastic chain conveyor systems?

Plastic chain conveyor systems utilize plastic conveyor chains which provide exceptional durability, corrosion resistance, tear resistance, and the capability to endure demanding working conditions and heavy loads.

Plastic conveyor belts don't stick to materials, so they're easy to clean and particularly suitable for industries with stringent hygiene standards such as food and pharmaceutical transportation.
