CXH Modular Plastic Chain Conveyor

103mm Chain Width

Technical Characteristics
  • Beam width: 105mm
  • Chain width: 103mm
  • Chain pitch: 35.5mm
  • Chain tension limit/tensile strength: 1250N
  • Item width: 25-300mm
  • Maximum item weight:
      Horizontal transport: 20kg
      Vertical transport: 10kg
  • Maximum conveyor load: 150-300kg
  • Maximum conveyor length: 30m

*The conveyor components may vary, and the conveyor system can be configured with suitable chains according to the production requirements, e.g., temperature, strength, etc.

The CXH modular plastic chain conveyor is an ideal solution for conveying applications in industries such as pharmaceuticals, cosmetics, food and beverage, and bearings. It features a three-dimensional design with polyoxymethylene (POM) conveyor chains and aluminum alloy frames, making the conveyor system an perfect choice for automated production lines.

Advantages
  • High impact resistance: This modular plastic chain conveyor is engineered with highly impact resistant, reliable, and low maintenance materials.
  • Compatible and convenient: Our plastic chain conveyors are designed to fit various conveyor lines from renowned brands like Flexlink, FlexMove, and Rexroth, ensuring convenient and flexible solutions.
  • Customizable and cost-friendly: We utilize standard conveyor components from our vast inventory to craft tailored conveyor solutions for each customer, streamlining assembly processes for swift delivery of customized solutions. This method guarantees cost-efficiency.
Applications

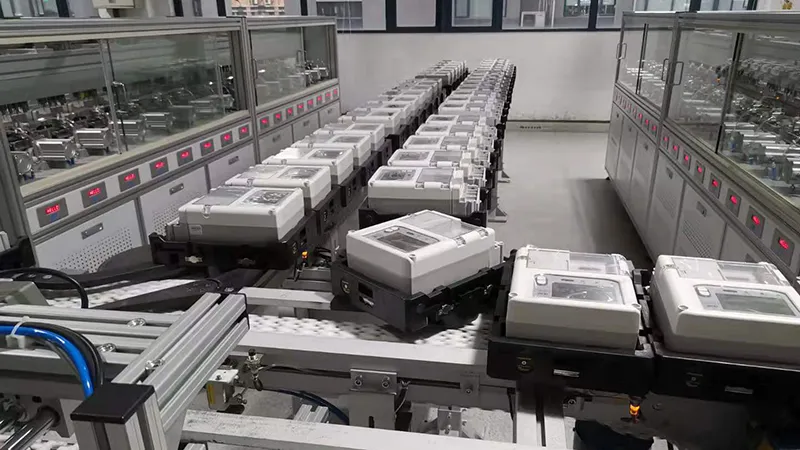

This conveyor is suitable for conveying products such as ball bearings, motor rotors, energy meters, low-voltage switches, paper towels, instruments and meters, car parts, packaged food, etc.

This plastic chain conveyor can be used in industries such as industrial manufacturing, electrical/electronic industries, automotive, logistics industries, packaging, etc.

Conveyor Components

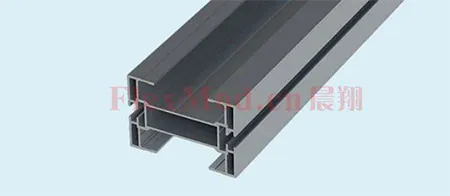

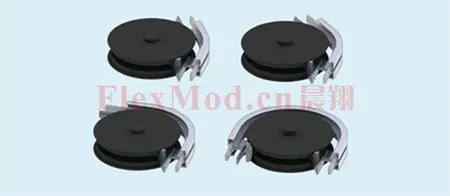

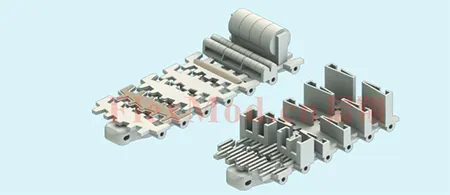

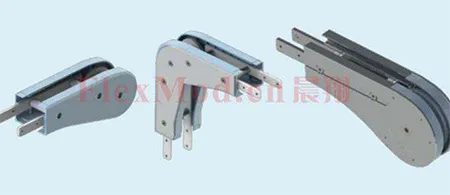

This modular plastic chain conveying system includes conveyor chains, conveyor beams, end drive units, idler end units, horizontal plain bends, and other various conveyor components. Each component is available in a range of options, ensuring flexibility for your conveying needs.

Discover More
Need help finding a conveyor system that fits your needs?
Modular Plastic Chain Conveyors
Conveyor System
Conveyor Accessories
Discover More Conveyor Types
CXW140 140mm Chain Width
CXW140 Modular Plastic Chain Conveyor 140mm Chain Width
CX180 175mm Chain Width
CX180 Modular Plastic Chain Conveyor 175mm Chain Width
CX300 295mm Chain Width
CX300 Modular Plastic Chain Conveyor 295mm Chain Width
CX45 43mm Chain Width
CX45 Modular Plastic Chain Conveyor 43mm Chain Width

Chain conveyor systems are suitable for various types and shapes of products.
Due to the characteristics of chain conveyor systems, they can perfectly transport a wide range of materials, from bulk materials to packaged ones, supporting items and materials that can be boxed, bagged, canned, and loose.

Chain conveyor systems, with their modular design, are easier to maintain and install, have energy-saving designs resulting in lower energy consumption, and offer higher conveying capacity, stable conveying speed, and accuracy.

Yes, our company's conveyor system module components are compatible with other leading brands such as FlexLink®, FlexMove®, and Rexroth conveyor systems.

Absolutely, our products come fully pre-assembled, so you won't need to worry about assembling them on-site. This saves you time and effort during installation. We also take special care to protect the goods during transport by disassembling support legs and motors and packaging them together with the equipment on the transport pallet.
