CX45 43mm Chain Width
CX45 43mm Chain Width CX45 43mm Chain Width
Request Information

CX45 Modular Plastic Chain Conveyor

43mm Chain Width

Technical Characteristics
  • Beam width: 45mm
  • Chain width: 43mm
  • Chain pitch: 12.7mm
  • Chain tension limit/tensile strength: 500N
  • Maximum conveyor load: 30kg
  • Maximum conveyor length: 6m
  • Materials: aluminum/stainless steel

*The conveyor components may vary, and the conveyor system can be configured with suitable chains according to the production requirements, e.g., temperature, strength, etc.

The CX45 modular plastic chain conveyor system is a compact and robust modular plastic chain conveyor designed to streamline the handling of small and lightweight products.

The conveyor system features aluminum alloy beams that enable both horizontal and vertical product conveying and distribution. Its design of compact, space-saving vertical bends ensures efficient floor space utilization, supports multi-level transportation, and facilitates operator access. This modular conveyor with chain width of 43mm accommodates a wide range of products with diverse weights and shapes, ranging from a few grams to 8 kilograms.

Advantages
  • Longer lifespan: Under standard conditions, our modular plastic chain conveyors boast an extended lifespan, often lasting for years without any performance degradation and demanding minimal maintenance.
  • Tailored conveyor solutions: We use standard components to design customized conveyor solutions tailored to the unique needs of each customer.
  • Quick delivery: Leveraging standard components allows for efficient design and assembly processes, enabling the delivery of customized conveyor solutions in less time.
  • Compatibility and flexibility: Our plastic chain conveyors are seamlessly compatible with renowned conveyor lines like Flexlink, FlexMove, and Rexroth. This compatibility offers you the flexibility to select the conveyor system that precisely fits your needs and preferences.
Applications

This modular plastic chain conveyor is suitable for conveying products as small as 10mm and lightweight products e.g. small bottles, cosmetics, etc. The modular conveyor system can be configured and assembled as twin-track pallet conveyor system.

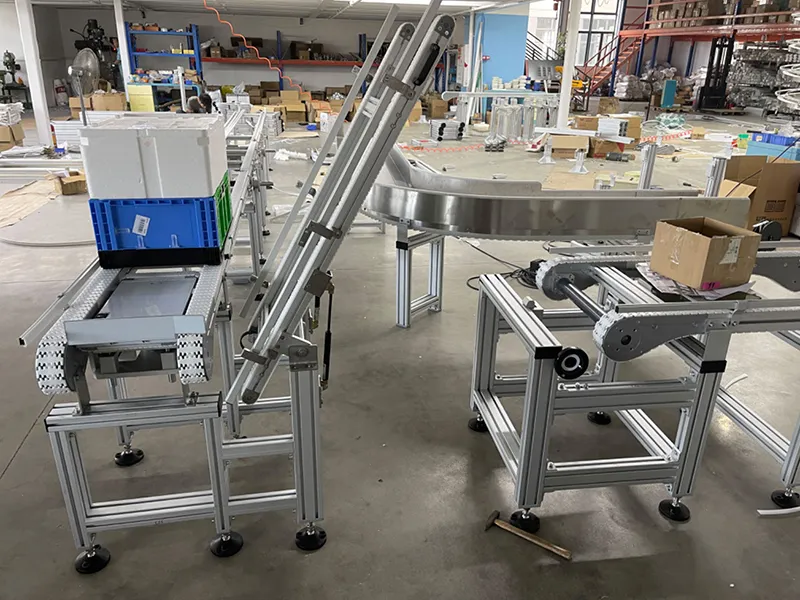

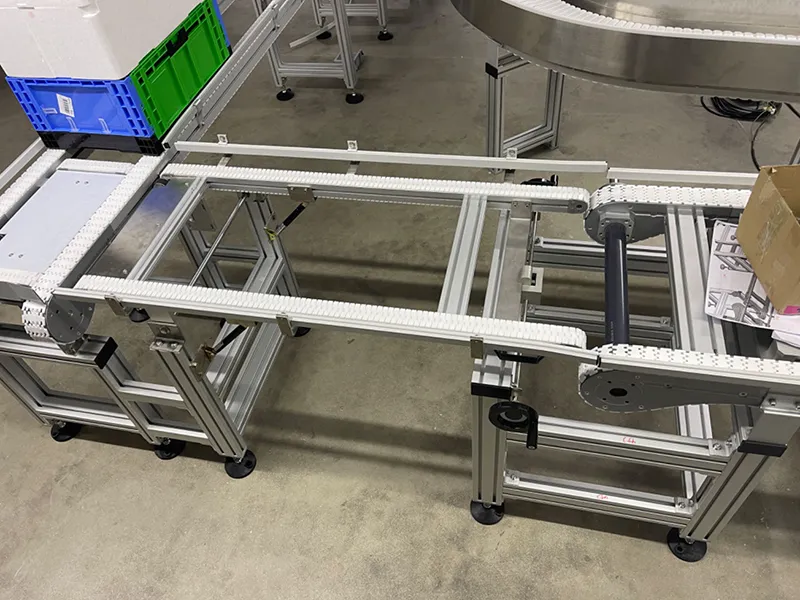

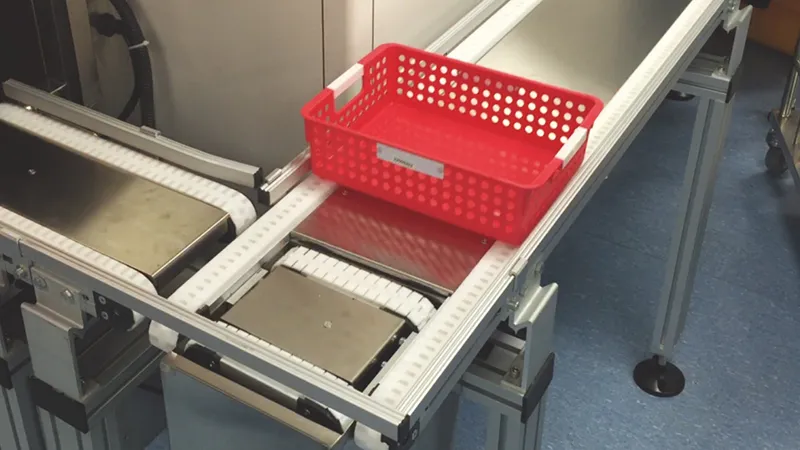

  • Transverse ConveyorTransverse Conveyor

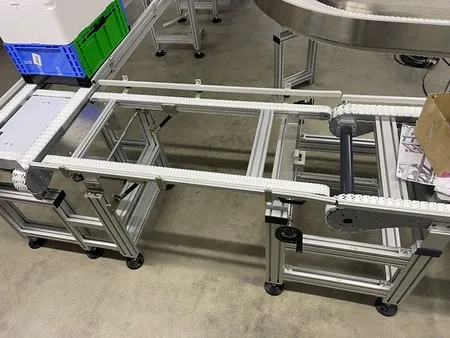

  • Pass-Through Gate ConveyorPass-Through Gate Conveyor

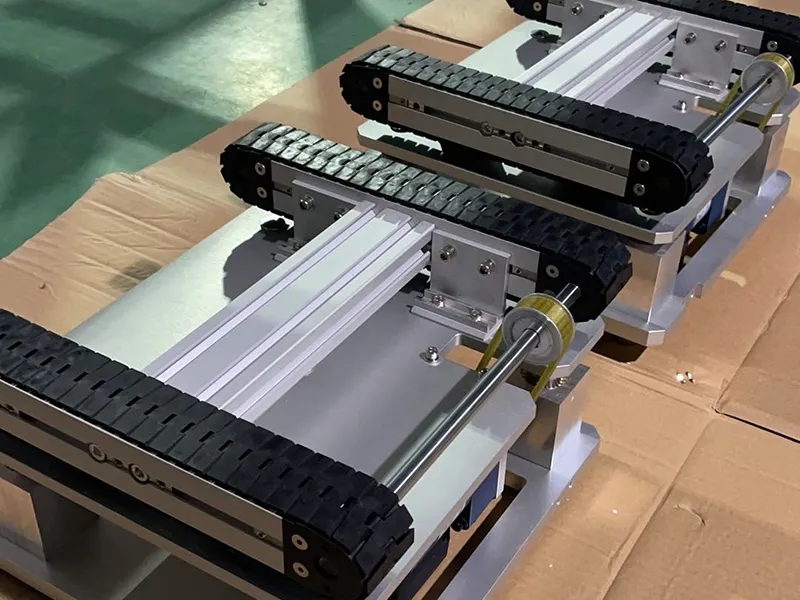

  • Lift Transfer UnitLift Transfer Unit

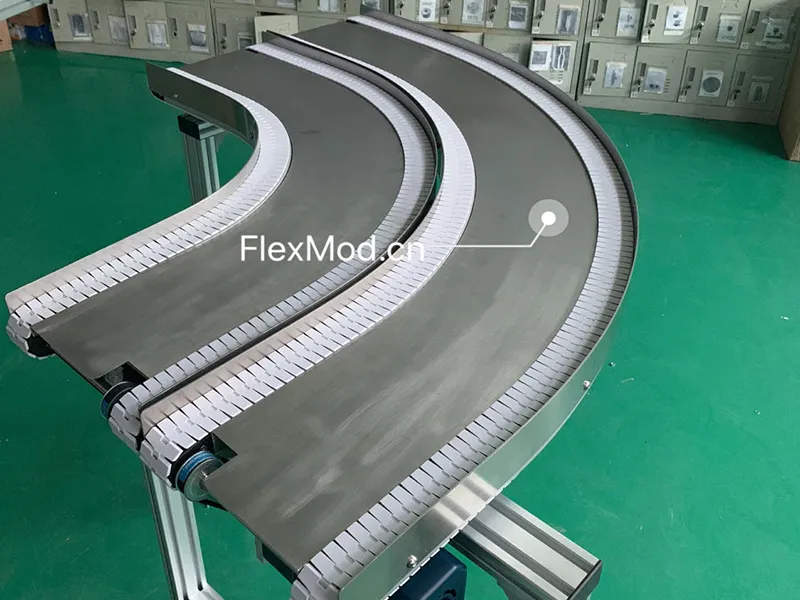

  • Curve ConveyorCurve Conveyor
Conveyor Components

This modular plastic chain conveying system includes conveyor chains, conveyor beams, end drive units, idler end units, horizontal plain bends, and other various conveyor components. Each component is available in a range of options, ensuring flexibility for your conveying needs.

Discover More

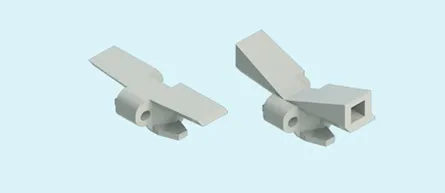

  • Conveyor chainsConveyor chains

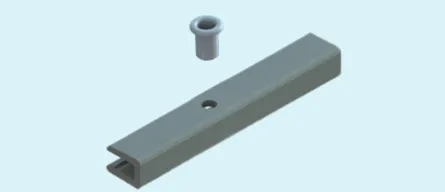

  • Conveyor beamConveyor beam

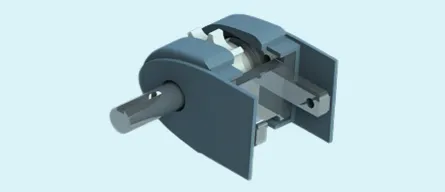

  • End drive unitEnd drive unit

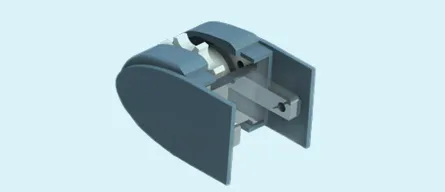

  • Idler end unitIdler end unit

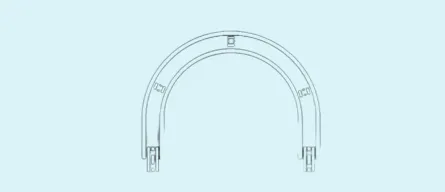

  • Horizontal plain bendsHorizontal plain bends
Need help finding a conveyor system that fits your needs?
Modular Plastic Chain Conveyors
  • CX45 43mm Chain Width
  • CXT 35mm Chain Width
  • CXS 44mm Chain Width
  • CXL 63mm Chain Width
  • CX85 83mm Chain Width
  • CXK 102mm Chain Width
  • CXH 103mm Chain Width
  • CXW140 140mm Chain Width
  • CX180 175mm Chain Width
  • CX300 295mm Chain Width
Conveyor System
  • Single Track Pallet Conveyor Single Track Pallet Conveyor
  • Twin Track Pallet Conveyor Twin Track Pallet Conveyor
  • Spiral Conveyor Spiral Conveyor
  • Buffer Conveyor Buffer Conveyor
  • Wedge Conveyor Wedge Conveyor
  • PU Belt Conveyor PU Belt Conveyor
  • Multi-Function Conveyor Multi-Function Conveyor
  • Roller Conveyor Roller Conveyor
Conveyor Accessories
  • Components for Plasctic Chain Conveyors
Discover More Conveyor Types
CXT 35mm Chain Width
CXT Modular Plastic Chain Conveyor 35mm Chain Width
CXS 44mm Chain Width
CXS Modular Plastic Chain Conveyor 44mm Chain Width
CXL 63mm Chain Width
CXL Modular Plastic Chain Conveyor 63mm Chain Width
CX85 83mm Chain Width
CX85 Modular Plastic Chain Conveyor 83mm Chain Width

How long has your company been established?

Our company has more than ten years of experience in this industry. Since the first conveyor system was delivered in 2014, we have shipped over 3000 units. In addition, we have launched the "FlexMod" brand and actively promoted it as our product line for sales and marketing purposes.

Compared to products from other competitors, what are the advantages of your products?

Our products are engineered using the finest DuPont POM100P grade material from the United States. We also have our own aluminum profile Computer Numerical Control (CNC) bending and rounding equipment (from a well-known Italian brand), ensuring controlled quality and fast delivery. The bending accuracy can be controlled within 1mm. Our unique lubrication formula and production process effectively prevent issues such as chain elongation, powder shedding, and noise.

When choosing a conveyor system, what factors should be considered?

The factors to be considered when choosing a conveyor system are many depending on the different requirements and industries, but the standard factors to always be considered are:

  • The weight and dimensions of the loads to be handled.
  • Characteristics of the tray base.
  • Required conveyor speed.
  • Height of the packaging line and compatibility with other conveyors.
  • Other functional requirements (turning, lifting, connection with forklifts, etc.).

Using flexible material handling solutions, what operations can be completed during material conveying?

Flexible material handling components and systems can achieve operations such as distribution, sorting, merging, and diverting during material conveying processes.
